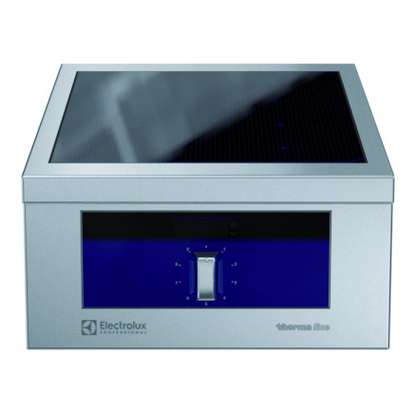

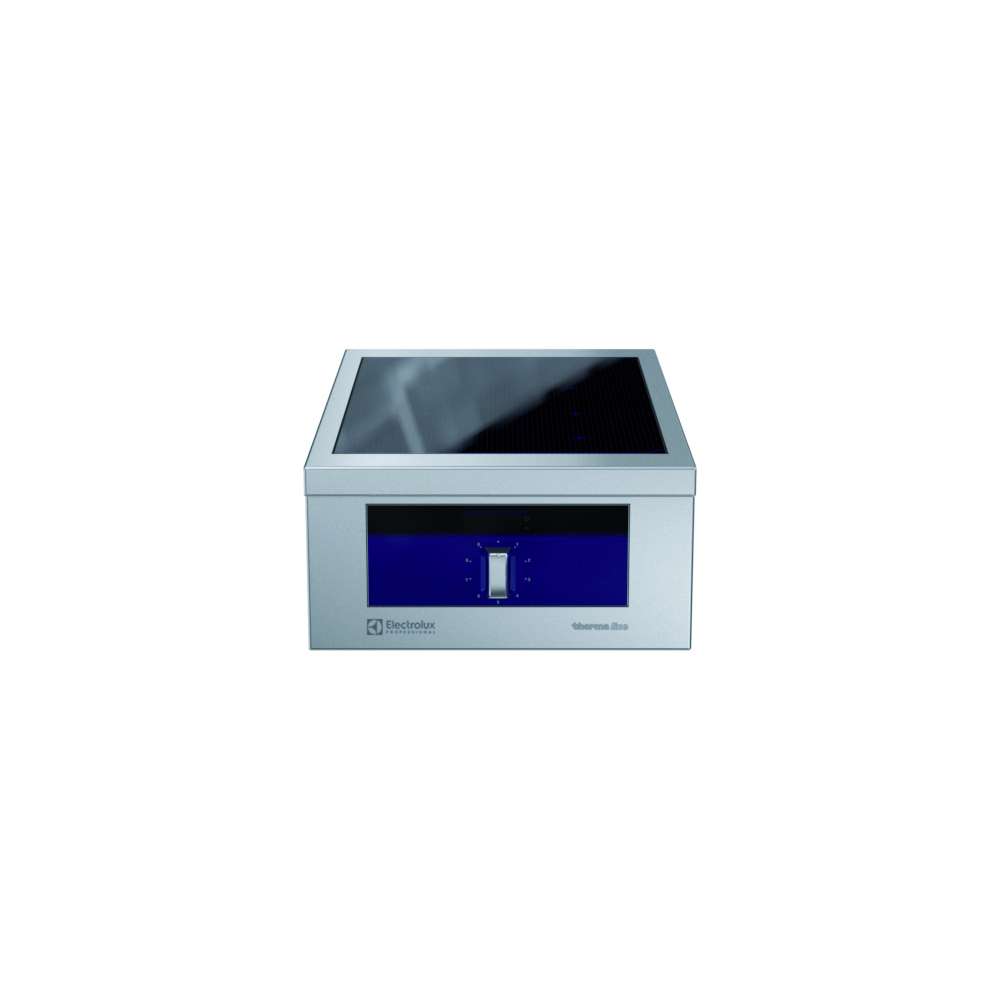

Modular Cooking Range Line thermaline 80 - 2 Zone Infrared Top, 2 Side (COD 588014)
Where to buy
Modular Cooking Range Linethermaline 80 - 2 Zone Infrared Top, 2 Side
Infrared cookers

Modular Cooking Range Line
thermaline 80 - 2 Zone Infrared Top, 2 Side

COD 588014

Infrared Top, 2 zones, two-side operated

Where to buy
Register your product

Specifications

  • Supply voltage: 400 V/3N ph/50/60 Hz

    Electrical power, max: 8 kW

  • External dimensions, Width: 400 mm

    External dimensions, Depth: 800 mm

    External dimensions, Height: 250 mm

    Net weight: 20 kg

    Configuration: Two-Side Operated;Top

    Front Plates Power: 4 - 0 kW

    Back Plates Power: 4 - kW

    Front Plates dimensions: 320x330

    Back Plates dimensions: 320x330

  • Current consumption: 17.3 Amps

Product Features

Pans can easily be moved from one area to another without lifting.
Glass ceramic cooking surface with 2 independently controlled infrared heating zones.
Residual hot warning system for safe operations.
9 power levels.
Large visible digital display manufactured in tempered glass to resist heat and chemicals, showing temperatures or power settings. The display also shows on/off status of the appliance and on/off status of the heating elements.
Metal knobs with embedded hygienic "soft-touch" grip for easier handling and cleaning. The special design of the controls prevents infiltration of liquids or soil into vital components.
THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service.
All major components may be easily accessed from the front.
The smooth glass-ceramic surface can be quickly and easily cleaned, thus providing maximum hygiene.
Overheat protection: a temperature sensor switches off the supply in case of overheating.
Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth.
2 mm top in 1.4301 (AISI 304).
Flat surface construction with minimal hidden areas to easily clean all surfaces
Control light for each zone.
Internal frame for heavy duty sturdiness in 1.4301 (AISI 304).
IPX5 water resistance certification.
Unit constructed according to DIN 18860_2 with 20 mm drop nose top.
